BRUNO KEA

Tattoo Machine Sidewheeler Brass Frame Coils Varnish | Bruno Ke

Réf 0G07.
As low as
€300.00 €360.00
Available
Discover Bruno Kea's Sidewheeler, an exceptional coiling machine handcrafted in France. With its brass frame, meticulous finishing and varied configurations, it meets the needs of the most demanding tattoo artists.
Available
0G070 - Sidewheeler - Liner
€300.00 €360.00
Available
0G071 - Sidewheeler - Liner Fat
€300.00 €360.00
Available
0G072 - Sidewheeler - Shader
€300.00 €360.00
Available
0G073 - Sidewheeler - Shader Fat
€300.00 €360.00
Available
0G074 - Sidewheeler - Hybrid
€300.00 €360.00
Available
Show more

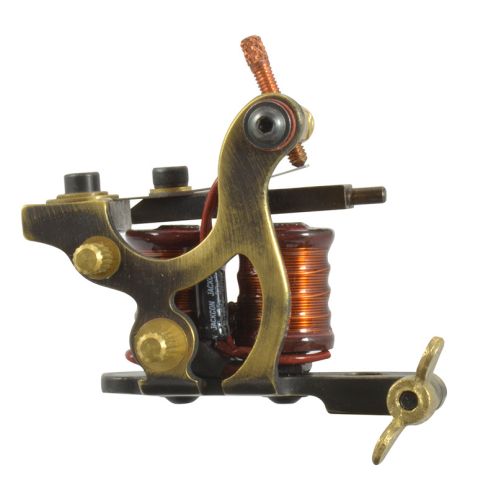

The Sidewheeler is much more than a coil tattoo machine: it's a functional work of art by renowned French tattoo artist and builder Bruno Kea. Every element of this machine is designed and manufactured in his workshop, guaranteeing handcrafted quality and attention to the smallest detail.

The hand-machined, patinated brass frame is cast in a local foundry, giving the machine exceptional robustness and a unique design. Ferrous components, such as coil cores, yokes and flyweights, are made from pure, carbon-free iron. This approach guarantees unrivalled durability and constant operation for "ad vitam æternam" performance.

Coils, copper contact screws and all Sidewheeler components are manufactured and assembled with remarkable precision. Each machine is carefully tuned by Bruno Kea himself, eliminating the need for break-in for an optimal experience right from the first use.

Available in several configurations - liner, liner fat, shader, shader fat and hybrid - the Sidewheeler adapts perfectly to your needs, whether for fine lines, thick lines or fluid shading.

With its craftsmanship and French manufacturing, the Sidewheeler embodies passion and excellence. Soon, you'll also be able to find all its spare parts in the ITC catalog for maintenance or customization at your convenience.

Technical specifications

Type : LINER

for bundles from 3 to 11 voltage from 6.5 to 9

Coil type : 25.4 mm (1 inch) / 8 or 9 turns depending on flange thickness
Frame : Brass
Weight : 189 gr

REF : 0G070

Type : LINER FAT LINER FAT

for bundles from 11 to 18, voltage from 7 to 9.5
Coil type: 25.4 mm (1 inch) / 10 turns
Frame: Brass
Weight: 197 gr

REF : 0G071

Type : SHADER

for magnums up to 13, voltage from 7 to 10

Coil type: 31.7mm (1 inch1/4) / 8 or 9 turns depending on flange thickness
Frame: Brass
Weight: 237 gr

REF : 0G072

Type : SHADER FAT

for magnums from 15 and , voltage from 8.5 to 13

Coil type: 31.7mm (1 inch1/4) / 10 turns
Frame: Brass
Weight: 240 gr

REF : 0G073

Type : HYBRIDE

for licked grays and watercolors with medium-sized magnums, excellent for filling with round shaders, and becomes a fearsome big liner at high voltage!

works from 6 to 9v

Coil type: 31.7mm (1 inch1/4) / 7 or 8 turns depending on flange thickness
Frame: Brass
Weight: 227 gr

Warranty : After-sales service or warranty provided by the manufacturer.

REF : 0G074
