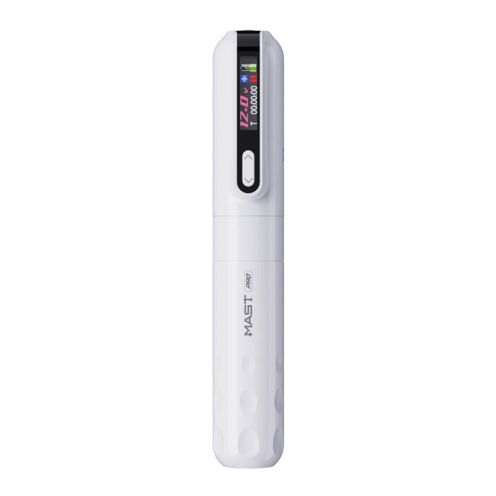

Cordless dermographer TOUR Y22 PRO | Dragonhawk Mast
Discover the Mast Tour Y22 Pro, a versatile dermograph equipped with a new-generation MCORE motor. This advanced technology ensures optimum power, delivering effective tracings even at low frequencies. Its lightweight, ergonomic design, with a 26 mm diameter handle, ensures a comfortable grip and reduces fatigue during long work sessions. Equipped with a MastLab battery control system, it offers extended autonomy and exemplary stability. You can easily adjust voltage and frequency thanks to its intuitive setting mode, accessible with a simple double-tap. Its Bluetooth wireless operation gives you unrivalled freedom of movement, for absolute precision and comfort.
Model: Dermographe Tour Y22 Pro
Brand : Dragonhawk Mast
Format: Stand-alone rotary pen
Type: Versatile
Eccentric: 3 mm
Motor: Coreless
Voltage min / max : 4 - 12 V
Working frequency: 3 - 90 Hz
Battery: Mastlab
Battery capacity: 1300 mAh
Display: LED
Battery charger: USB-C
Autonomy (8 V): > 6 h
Charging time: < 3.5 h
Length: 146 mm
Weight: 125 g
Material: Aluminum
Color: White
Compatibility: Needle cartridges
Warranty: 2 years
Press and hold the button at the end of the machine to switch it on and off. Once switched on, a quick click pauses/runs the machine. Double-click to change voltage mode.
Use the buttons at the bottom of the screen to set the tension or stitches according to the mode used. In Bluetooth mode, the machine can be controlled wirelessly by foot pedals (or other controllers).
Screen display :
- Operating status
- Tension / Stitch frequency
- Battery level
- Operating time
- Operating mode display
- Bluetooth connection display
